We offer a wide range of LED displays which can easily be installed onto your weighbridge(s), or we can bespoke a display to suit your needs, we have built many displays for all types of industries from displays at Powerstations to Formula 1 Racing.
The displays below are just our standard ones but if you do require something a little different please contact us
| 4” Remote Displays | |

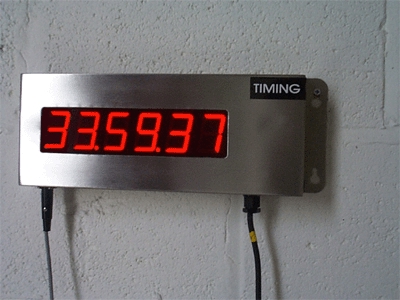

| Bi-directional Counter Countdown Timing General Timing Weigh Display Production Control Message Control System | RS232/RS4885 230V/110V 30VA Network Ready 24 hour count (resolution 1 second) 7 Segment Alpha |
| 2” Remote Displays | |
| Bi-directional Counter Countdown Timing General Timing Weigh Display Production Control Message Control System | RS232/RS4885 230V/110V 18VA Network Ready 24 hour count (resolution 1 second) 7 Segment Alpha |
| Auctioneers (Two Line) | |
| |

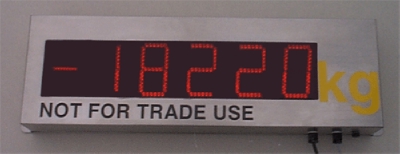

| Remote Weight Display - JSSAD814 | |
| Optional - Manual entry via Handheld Terminal IP65 Stainless Steel Case 1270mmx718mmx90mm With 14 off 50mm high digits sunlight viewable RS232/RS485 Optional - Manual entry via Handheld Terminal |
| Remote Weight Display – JSSAD47 |
| P65 Stainless Steel Case 835mmx270mmx90mm With 7 off 50mm high digits sunlight viewable RS232/RS485 Optional - Manual entry via Handheld Terminal |
| Remote Weight Display - JSSAD87 |
| IP65 Stainless Steel Case 1270mmx374mmx90mm With 7 off 100mm high digits sunlight viewable Optional -Manual entry via Handheld Terminal |
| Remote Weight Display – JSSAD47 |
| P65 Stainless Steel Case 835mmx270mmx90mm With 7 off 50mm high digits sunlight viewable RS232/RS485 Optional - Manual entry via Handheld Terminal |
| Remote Weight Display - JSSAD87 |
| IP65 Stainless Steel Case 1270mmx374mmx90mm With 7 off 100mm high digits sunlight viewable Optional -Manual entry via Handheld Terminal |
| Displays are housed in IP 65 s/steel cases, and Modified to your requirements. Example: Black Flag/Sin Bin used at Karting Race tracks Network Ready RS232/RS485 230V/110V 30VA |
Options |
| 8 Switched Inputs 8 Outputs (10amp 30V) Manual Entry with the JSSHH44TP Handheld Terminal |
